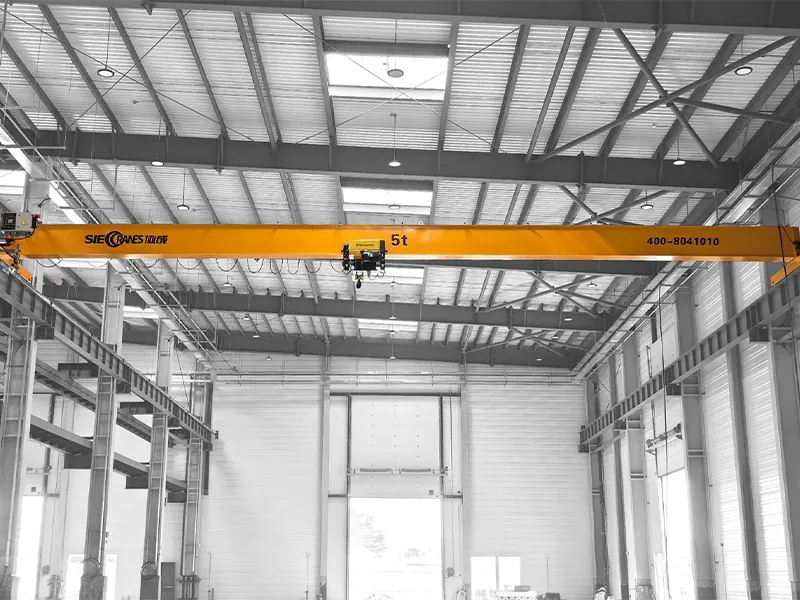

Single Girder Overhead Crane

SIEC single girder bridge crane is designed for light-to-medium duty material handling. Its simple structure, light deadweight and easy installation make it the most economical choice for small and medium-sized factories.

With a single girder design and an electric hoist running on the lower flange, it provides reliable lifting performance at a price point suitable for virtually any workshop environment.

Get a Quote

Technical Specifications

Standard parameters for single girder overhead cranes

Parameter	Range
Lifting Capacity	1 – 20 tons
Span	3 – 31.5 m
Lifting Height	6 – 18 m
Working Duty	A3 – A5 (Light / Medium)
Hoist Type	Wire rope hoist / Chain hoist
Travel Speed (Crane)	10 – 30 m/min
Travel Speed (Trolley)	10 – 20 m/min
Control Mode	Pendant / Remote control
Power Supply	380V / 415V / 480V, 3-Phase, 50/60Hz
Working Temperature	-20°C – +45°C

Key Features

Why choose our single girder crane

⚙️

Simple Structure

Single beam design reduces complexity and simplifies daily maintenance. Fewer moving parts mean higher reliability.

⚖️

Light Self-Weight

Optimized steel structure minimizes dead load, reducing the supporting steelwork requirements and installation costs.

💰

Cost-Effective

The most affordable overhead crane solution. Low initial investment with fast payback through improved handling efficiency.

🔧

Easy Installation

Modular assembly design allows quick on-site installation. Pre-assembled components reduce downtime during setup.

🔄

Flexible Control

Available with pendant push-button control or wireless remote control for operator convenience and safety.

🛡️

Reliable Safety

Equipped with overload limiter, emergency stop, limit switches, and anti-collision protection as standard.

Applicable Industries

Where our single girder cranes excel

🏭 Manufacturing Workshops

Ideal for machine loading/unloading, assembly line feeding, and general part handling in small to medium factories.

📦 Warehousing & Logistics

Efficient goods receiving, storage retrieval, and truck loading in warehouses and distribution centers.

🔩 Steel & Metal Fabrication

Handling steel plates, pipes, and fabricated components in metalworking and fabrication shops.

🚗 Automotive Parts

Transporting engine blocks, transmissions, and other heavy parts in automotive component workshops.

🌾 Agricultural Machinery

Assembly and material handling in agricultural equipment manufacturing and repair facilities.

♻️ Recycling & Waste

Moving bales, scrap metal and waste bins in recycling centers and waste processing plants.
