Jib / Cantilever Crane

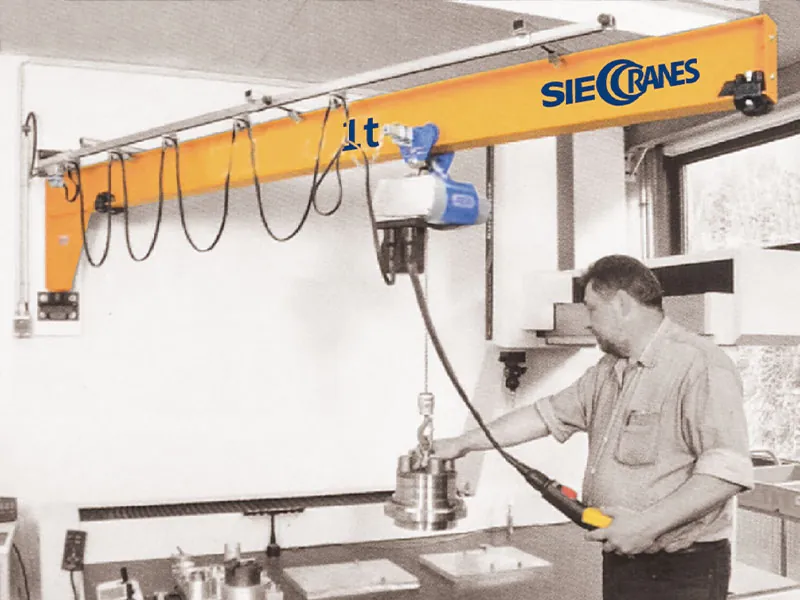

The SIEC jib crane (also known as a cantilever crane or boom crane) is a fixed-position lifting device mounted on either a floor-standing pillar or a wall bracket. A horizontal jib arm extends from the mounting point, and a hoist trolley runs along the jib to provide lifting coverage within a 180°–360° arc.

Available in pillar-mounted, wall-mounted, and wall-traveling configurations, SIEC jib cranes offer an economical solution for localized lifting at individual workstations.

Get a Quote

Technical Specifications

Standard parameters for jib cranes

Parameter	Range
Lifting Capacity	0.125 – 5 tons
Jib Radius	2 – 10 m
Lifting Height	2 – 8 m
Rotation Angle	180° / 270° / 360°
Mounting Type	Pillar-mounted / Wall-mounted / Wall-traveling
Hoist Type	Chain hoist / Wire rope hoist
Travel Speed (Trolley)	Hand-chain or electric
Control Mode	Pendant / Remote control
Power Supply	380V / 415V / 480V / Single-phase
Working Temperature	-20°C – +45°C

Key Features

Why choose our jib crane

📐

Compact Footprint

Requires minimal floor or wall space, making it ideal for crowded workshops and tight workstation layouts.

🔄

Full Rotation Capability

Available with 180°, 270° or 360° rotation to cover a wide working area from a fixed mounting point.

🧱

Multiple Mounting Options

Choose from pillar-mounted (floor standing), wall-mounted, or wall-traveling configurations to suit your facility layout.

⚙️

Simple Operation

Manual or electric hoist operation with hand-chain or pendant control for straightforward, intuitive use.

💰

Low Cost Solution

One of the most affordable overhead lifting solutions — perfect for localized lifting without a full bridge crane investment.

🔧

Easy Maintenance

Simple mechanical design with minimal moving parts means low maintenance requirements and high uptime.

Applicable Industries

Where jib cranes are most effective

🔧 Machine Shops

Loading parts onto CNC machines, milling machines, lathes and workbenches in precision machining shops.

🏭 Assembly Workstations

Positioning components during assembly operations, reducing manual handling and operator fatigue.

🚗 Auto Repair

Lifting engines, gearboxes and heavy parts in automotive service centers and repair workshops.

📦 Loading Docks

Assisting with truck loading/unloading at dock areas where a full overhead crane is not available.

⚡ Utility & Maintenance

Pump maintenance, motor handling and equipment servicing in utilities and facility maintenance workshops.

🔬 Laboratories & Test Bays

Handling heavy test fixtures, calibration weights and laboratory equipment in R&D facilities.

Get a Quote — Jib Crane

Tell us your workstation requirements and we will recommend the best jib crane configuration.
